ACL Series
Inverter Incoming Power Reactor
- Typeinfo : Input&Cutout Reactor
- Order hotline: +86-577 62870600
- Brief Introduction
- Technical Paramete

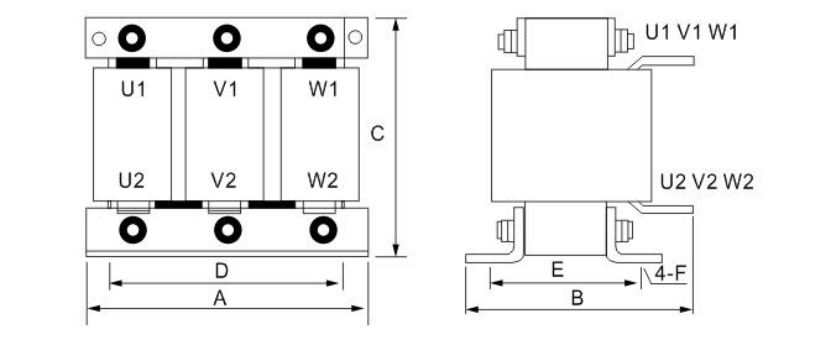

- Product Size
General
This product is made of high-quality imported silicon steel sheet and high-quality copper wire through advanced technology. Small size, low temperature rise, and no noise. Usually installed at the input end of the inverter's DC governor, it can inhibit the harmonics generated by the inverter from being transmitted to the grid, reduce the interference of the harmonics generated by the frequency conversion on other components, improve the quality of the grid, increase the power factor, and limit the voltage of the grid Abnormal wave. The impact current on the grid and the power grid smoothes the waveform and reduces the impact on the frequency conversion.
Main Technical Data
Voltage drop：2%-4%
Rated operating voltage：380V/50Hz
Electric strength: iron core-winding 2500VAC/50Hz/10mA/60s no arcing no breakdown;
Insulation resistance: iron core-winding 500VDC
Insulation resistance ≥100MV
Noise of reactor: less than 35dB (measured from 1 meter away in horizon from reactor)
Temperature rise less than 60K
Note: The above mentioned data is the reference of typical models, we can design and produce according to the special requirement by user, we would reserve the right to change the technical data.
